Technical data of automatic heavy machinery

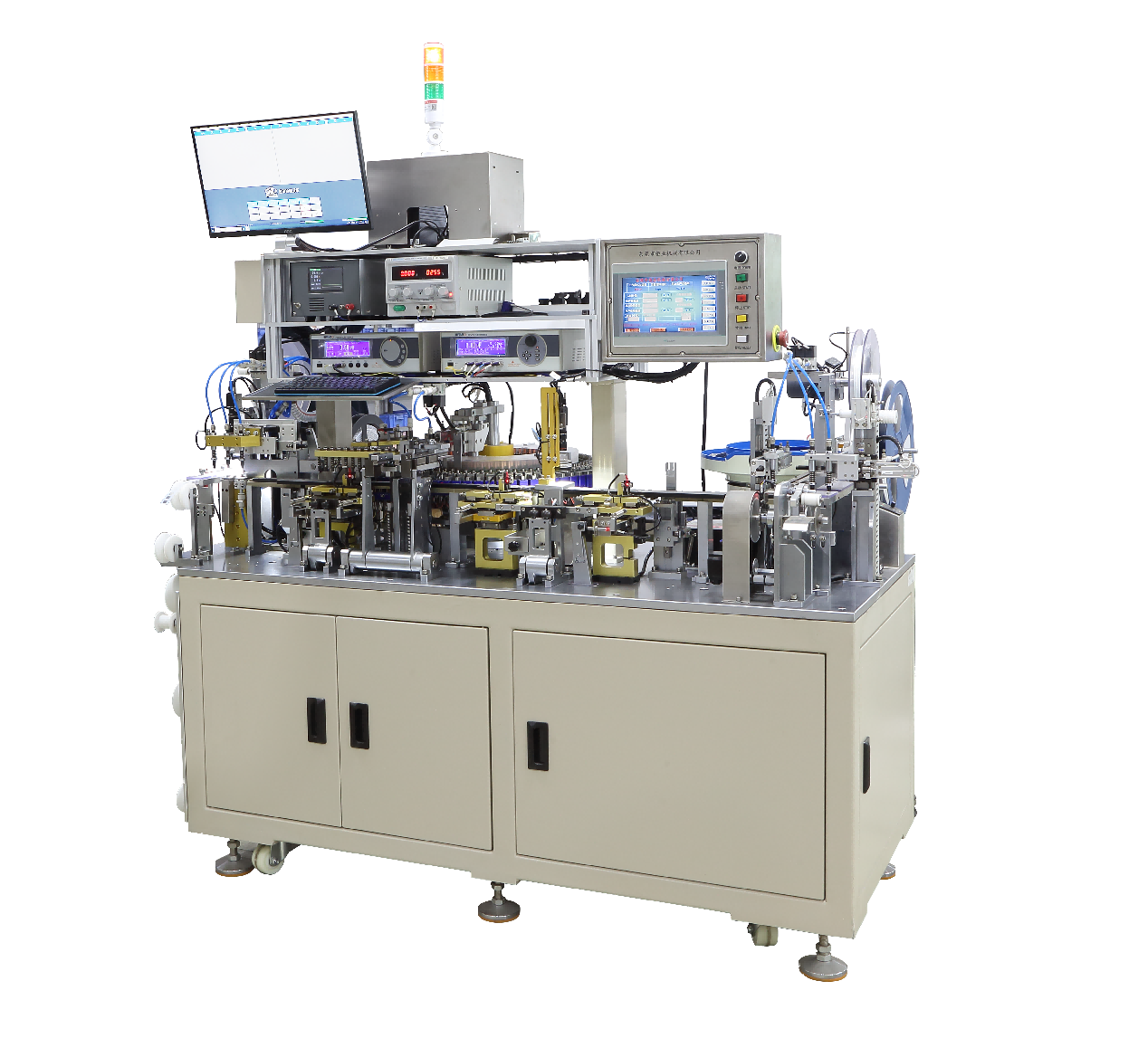

1, Overall appearance: 2180 in length, 1140 in width, and 1950 in height, used for rework of defective single disc and bulk materials. Bulk materials are loaded onto the track using a vibrating disc and vacuum suction; The upper and lower straps of a single disc are collected separately, and the cassette boxes are collected in bulk in cardboard boxes. After the single disc is collected, the upper and lower straps need to be manually connected and bonded.

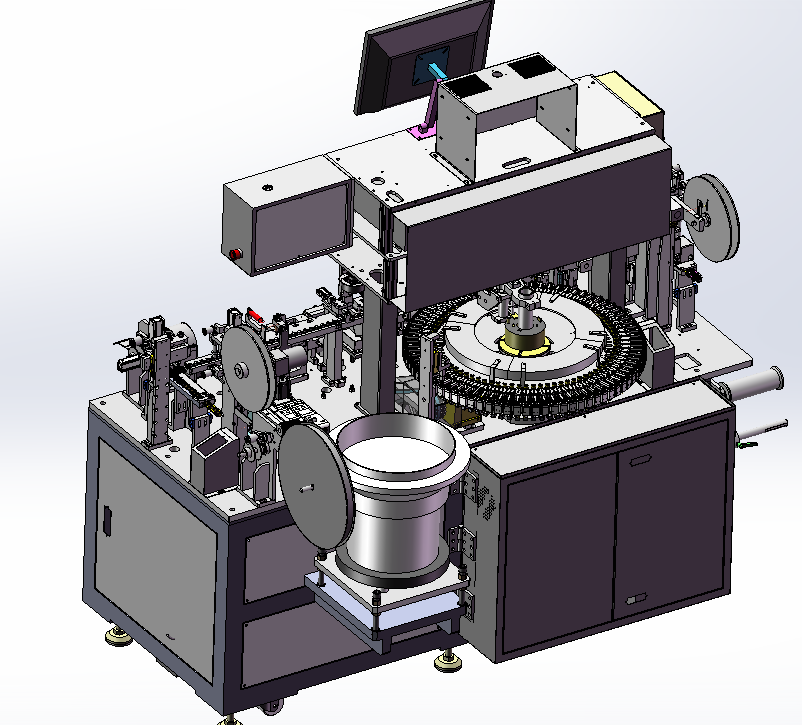

2, Rear view:

3, Main institution description: This machine is equipped with a control screen and display for easy operation. After positioning the cassette, it is necessary to separate the upper and lower tapes of each disc. In the first tray, the upper tape needs to be attached to the upper tape receiving tray for fixation, while the lower tape needs to be pulled onto the needle wheel. Every time a cassette is collected, the device will issue an alarm prompt. At this time, the upper tape of the second tray needs to be fastened (or bonded) to the upper and lower tapes of the previous tray to continue collecting materials. When the upper belt is fully collected, an alarm prompt will also be issued. The two heavy industry modes of single disc heavy industry and vibration disc bulk feeding can be freely switched on the human-machine interface with buttons. According to customer needs, the testing capacity can be selected LC、 Short circuit project, single disc rework speed of 75 ± 5PCS/min, bulk vibration disc rework speed of 45 ± 5PCS/min.

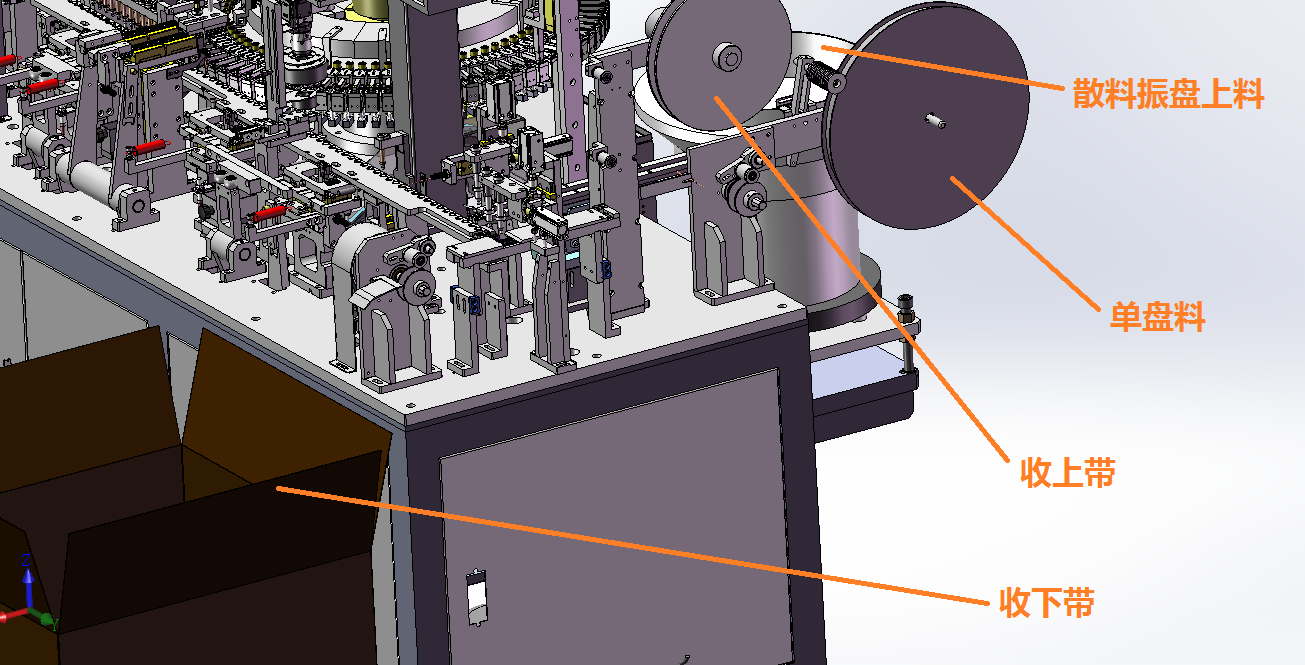

4, Diagram of feeding mechanism: The product suction box adopts a cylinder method.

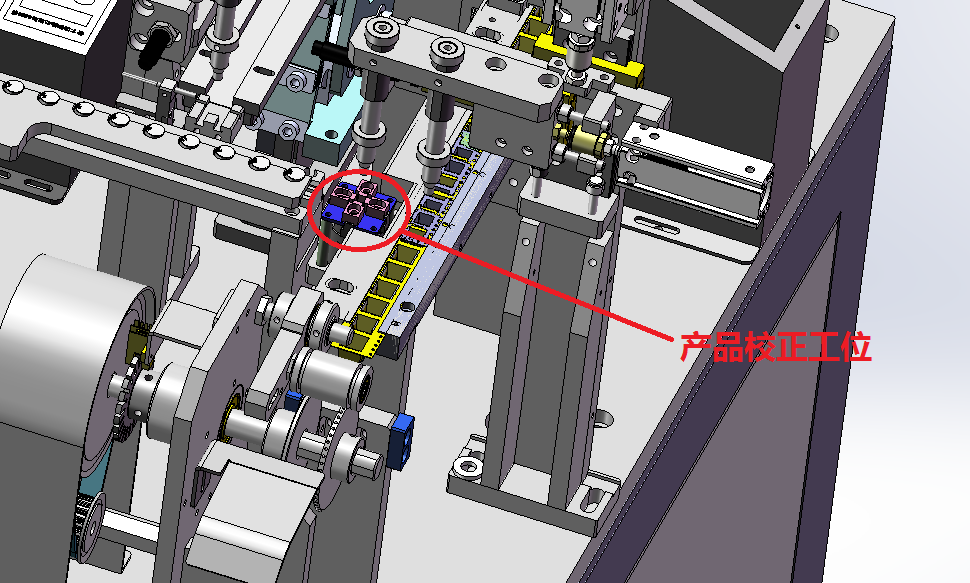

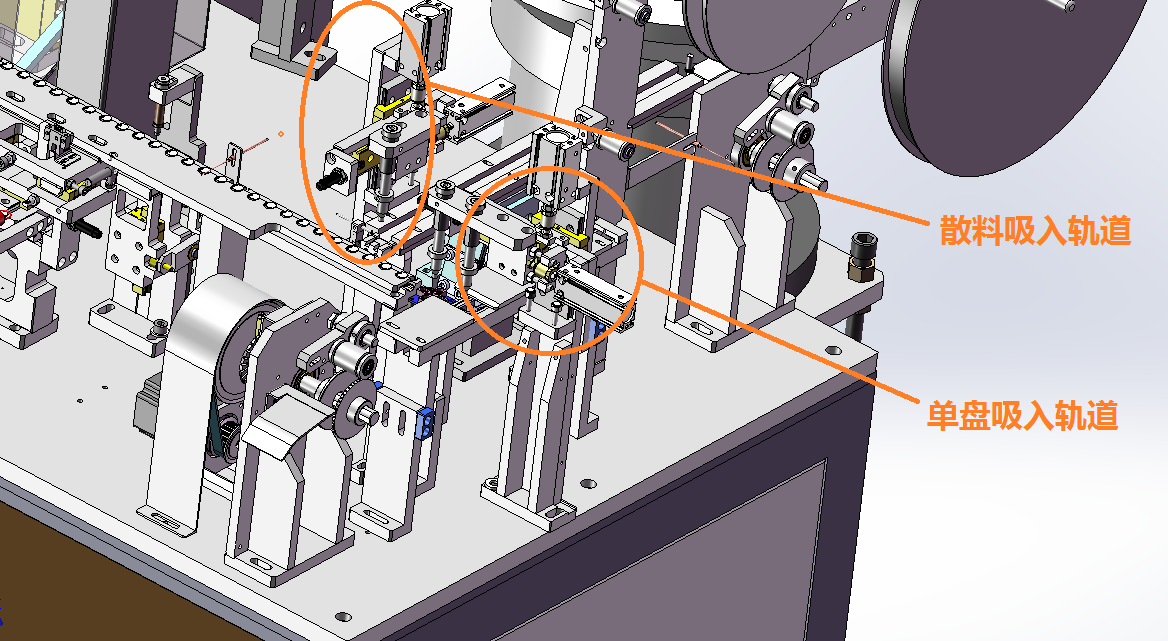

5, Handling and vacuum suction box mechanism: The product is sucked into the box using a vacuum nozzle. Before suction, the product is positioned by the transition station and then sucked into the product track.

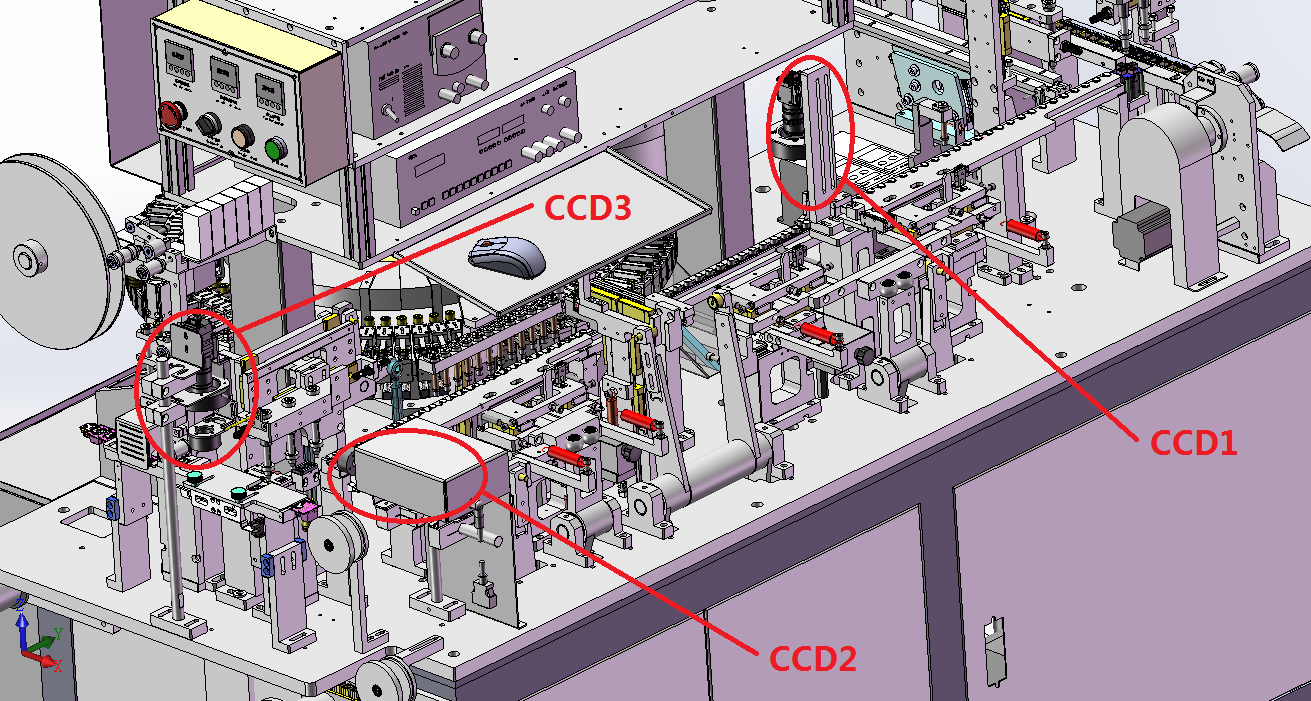

6, Three sets of CCD detection:

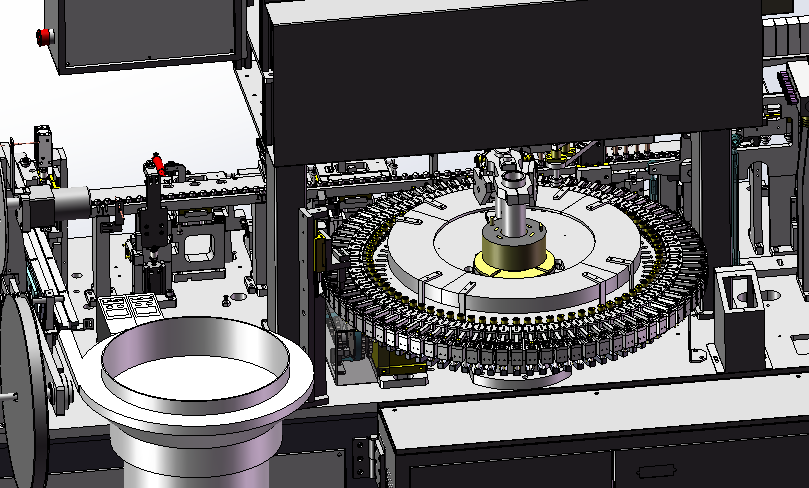

7, 80 station charging disc:

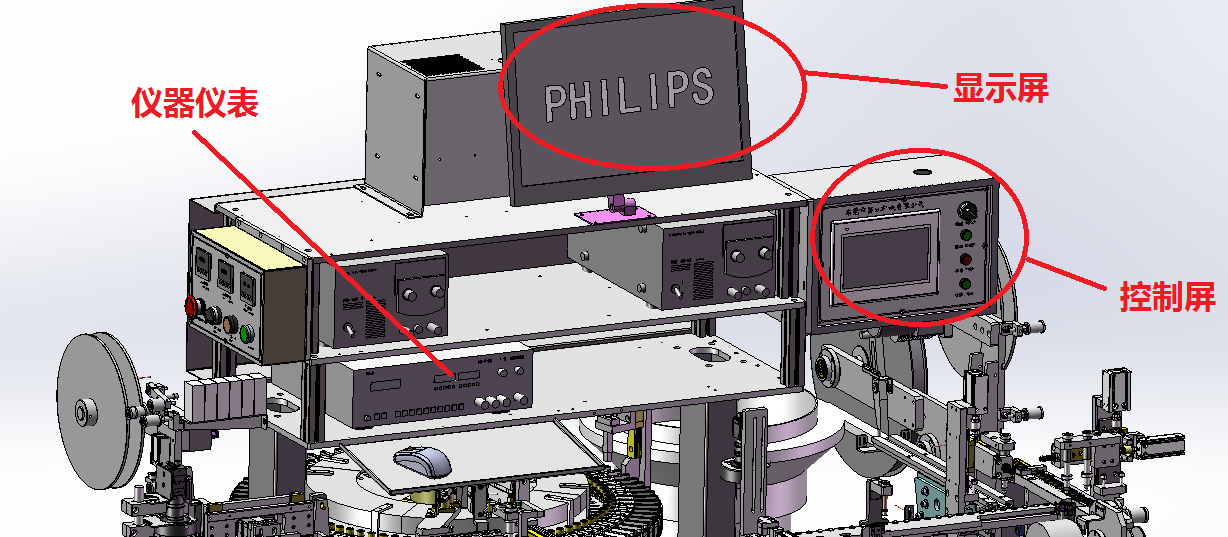

9, Instrument/Meter/Control Screen and Display Screen:

The structure design of this machine is simple, suitable for product specifications ranging from ¢ 5 to ¢ 12.5, and easy and fast to operate.
