JY-USB5 Battery Assembly Machine
[Next]

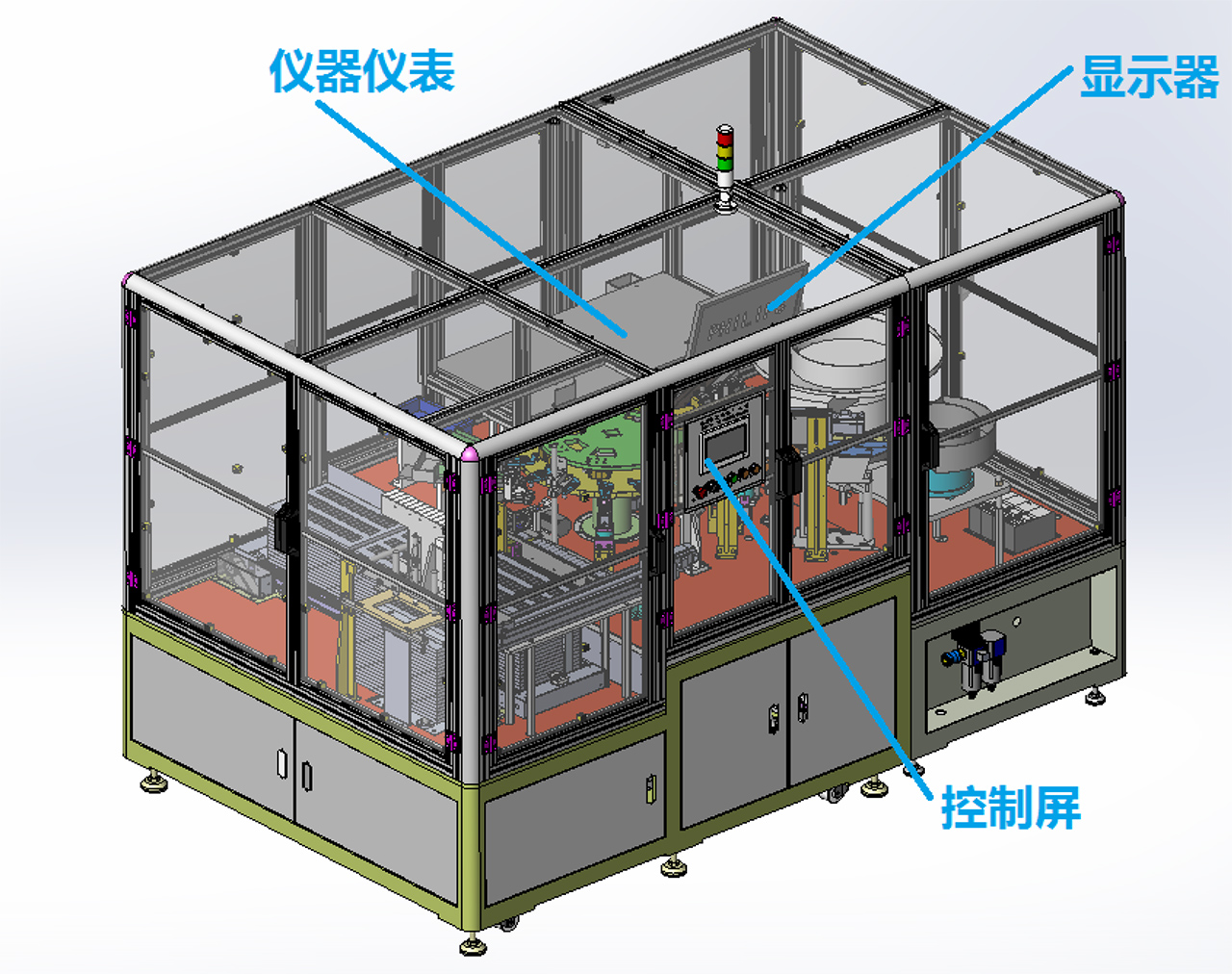

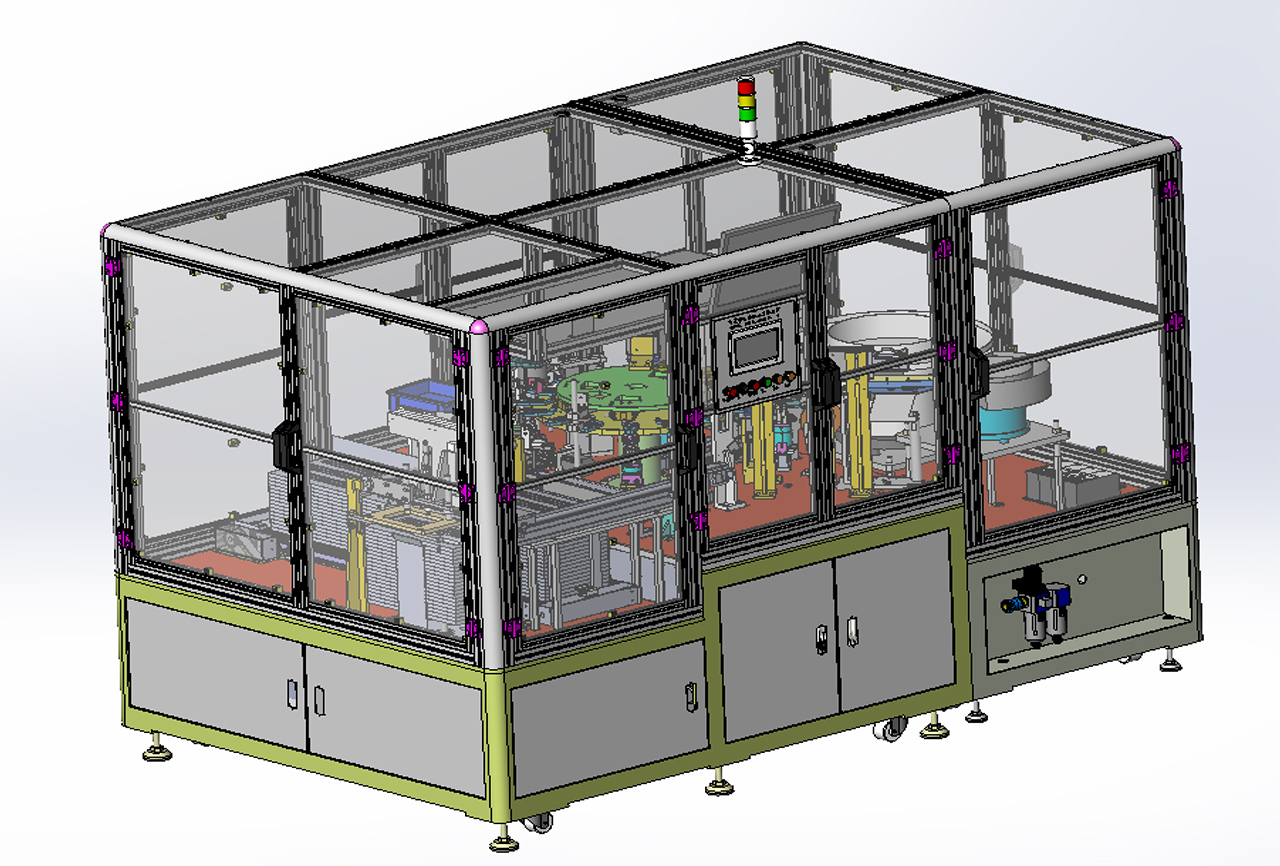

Overall outline drawing

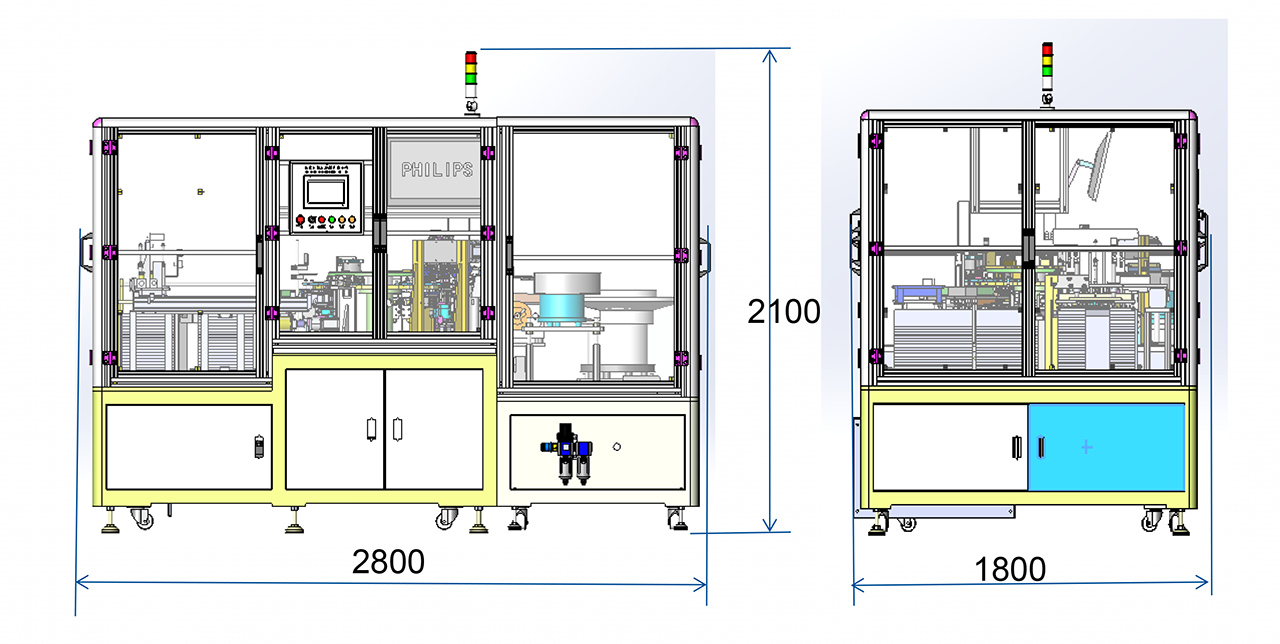

Plan Outline Dimensional Drawing

Unit: Millimeters

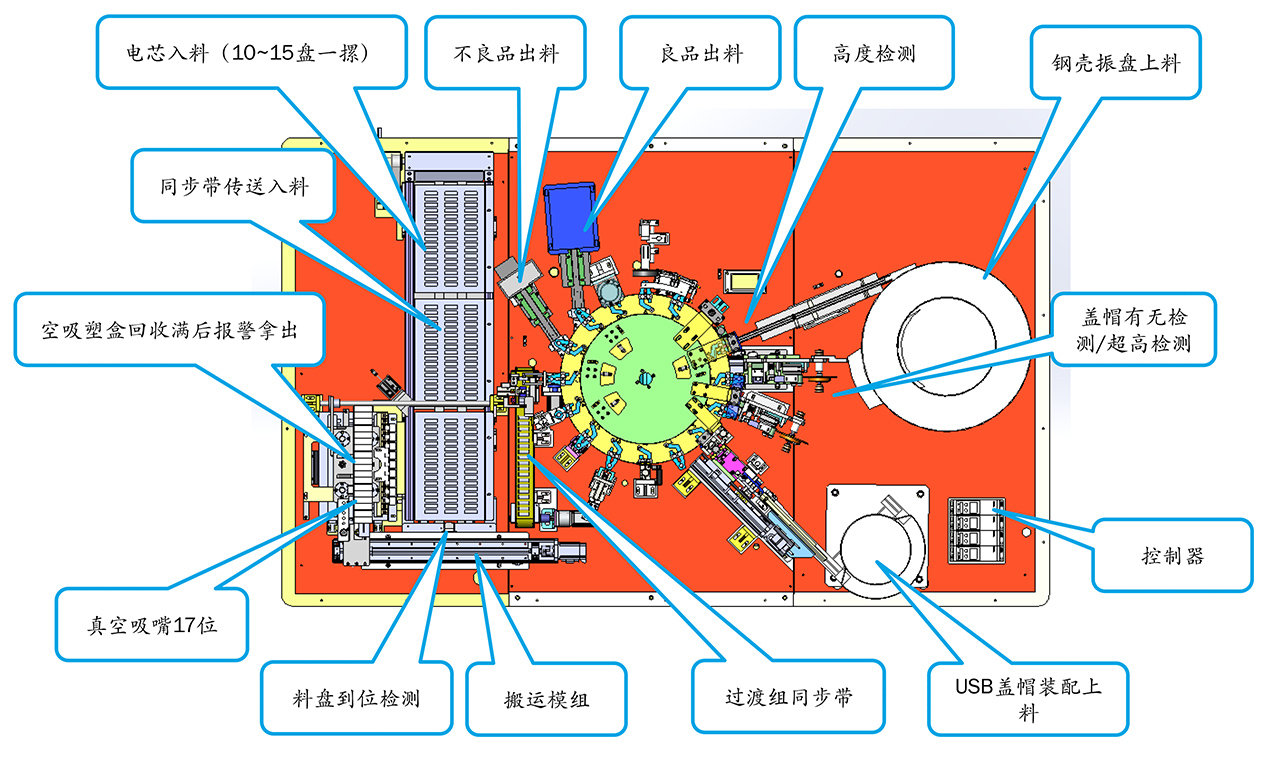

Schematic diagram of planar process flow

Schematic diagram of planar process flow

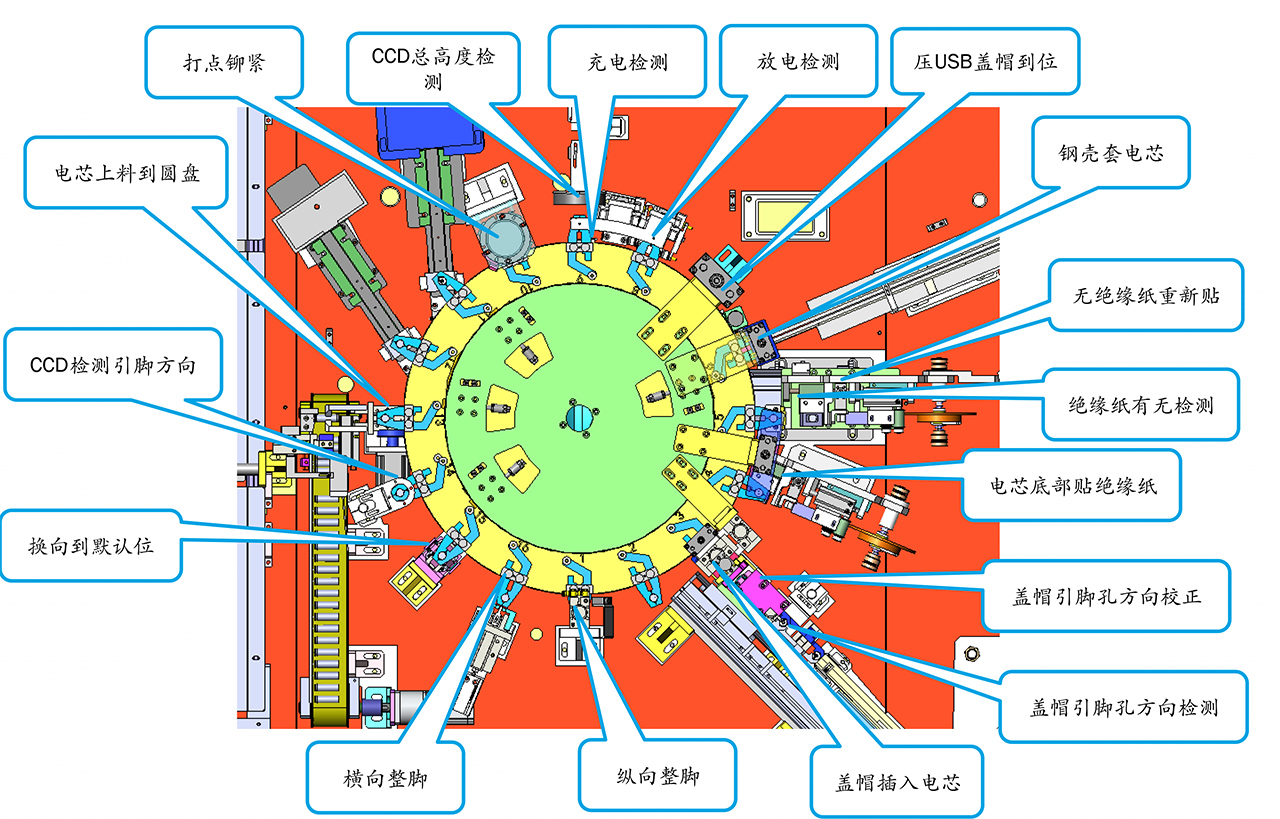

Disc workstation description

Description of Control Operating Mechanism

Product specifications and efficiency

This machine adopts one to three CCD detection to detect the pin holes of the battery cell and the cap, ensuring that the angle of insertion of the battery cell and the cap is aligned. When the cap is inserted, the pins of the battery cell are also guided and clamped by a straightening clip; CCD detection of the total height of the battery is more accurate; After applying the insulation paper, an additional set has been added to the next testing sticker workstation The sticker mechanism ensures that the certificate is not stopped and the insulation paper is pasted before testing again, making the operation more convenient and the production efficiency higher.

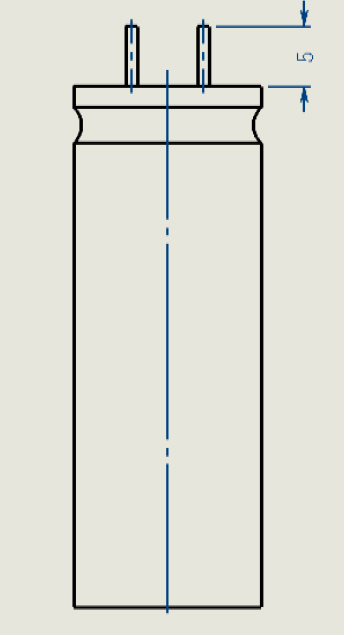

This device is suitable for product specifications: No. 5 battery, battery pin length>5mm

Local production efficiency: 20PCS/Min
